OUR DRONE SERVICE

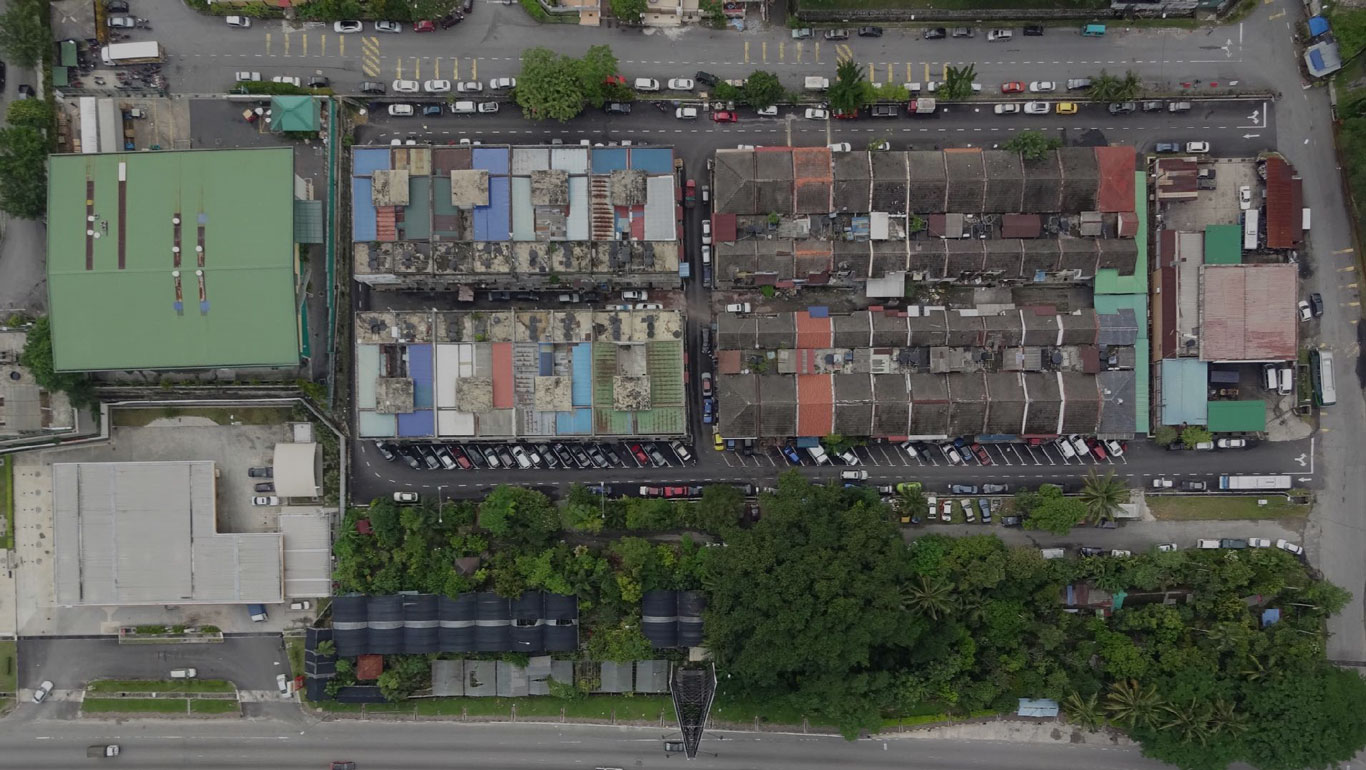

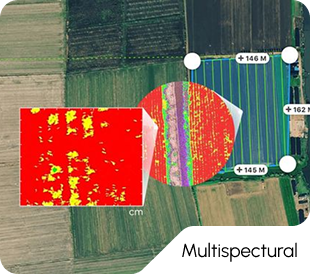

Aerial Survey
Aerial Survey for Engineering

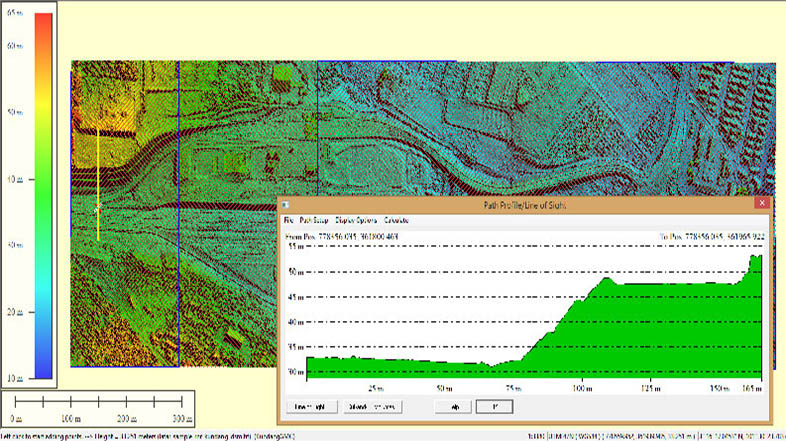

- Terrain Analysis
- Contour Mapping (interchangeable intervals)
- Length, width, and area calculations
- Project Progress Tracking

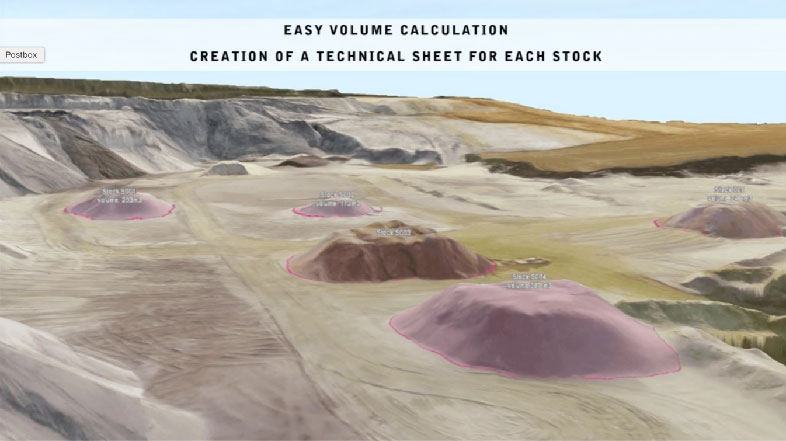

- Volumetric Calculations
- Cadastral maps
- Landscape planning
- 3D Master Plan Creations
Previous
Next
Aerial Inspection

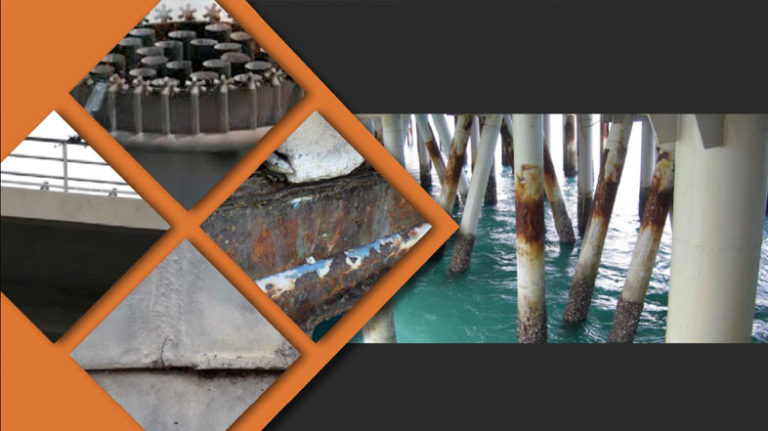

Inspection of Various Types Structure
- Slope and Drainange
- Dam

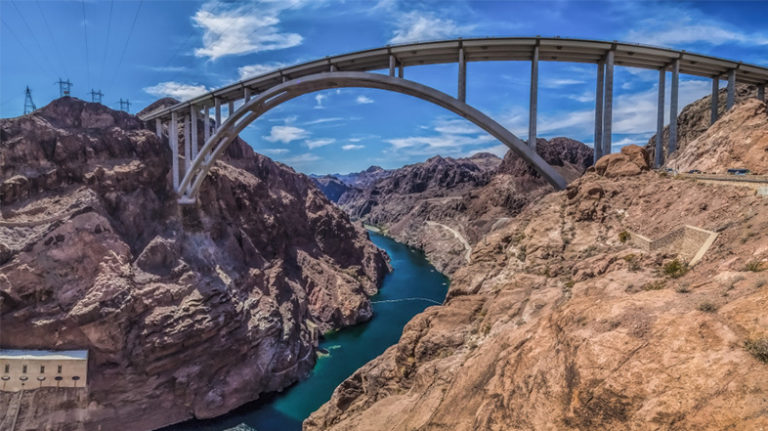

- Bridges
- Elevated Structures

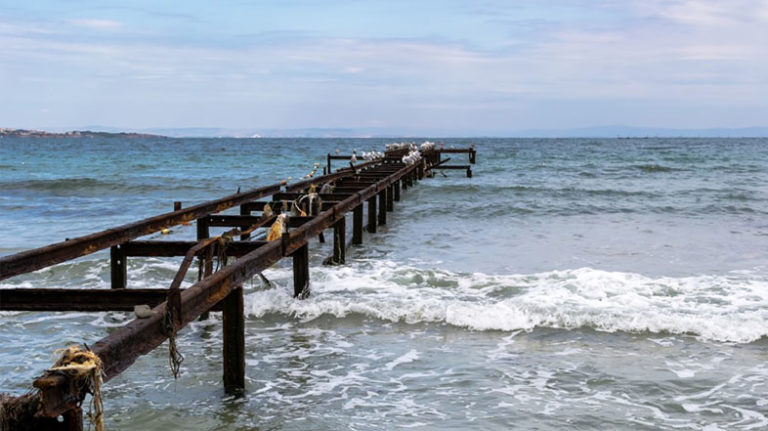

- Jetties and Wharf

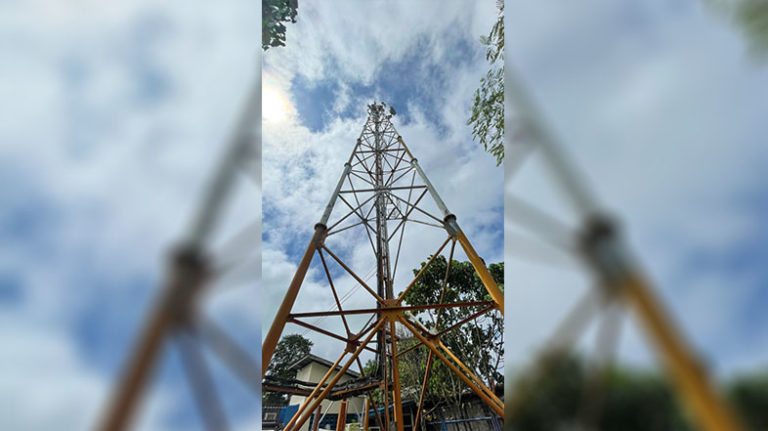

- Telco Tower Inspection
- Tanks
- Underdeck Platform
- Flare Tip
- Mobile Machine
- Heights
- Water
- Moving Plants (trucks)
- Operating Conveyor
- Hot Area
- Confined Space
- Electrical Hazards
- Hazardous Area
- Unstable Ground
Previous
Next
IFCON DRONE
OUR EQUIPMENT
Fixed Wing - DT18
Workhorse for Orthophoto / Aerial Mapping Long Range Mission and Large Area
Perfect for linear infrastructure monitoring, precision agriculture, and GIS applications (mapping). Its telecom abilities include video transmission of up to 15 km, command control transmission of 50 km, and a 3G/4G datalink. The craft features removable wings and fail-safe mechanisms for enhanced security, and is capable of autonomous takeoff and landing. Full autonomous flight is enabled by the UAV autopilot system, while an on-board computer, controls the payload (max of 300 g) and telecommunications 1GHz

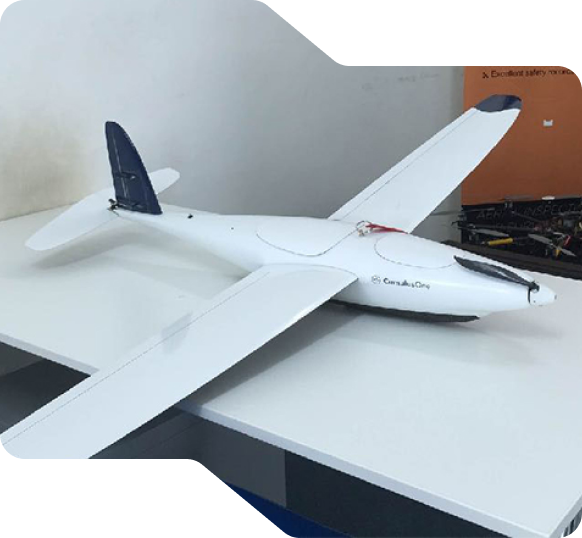

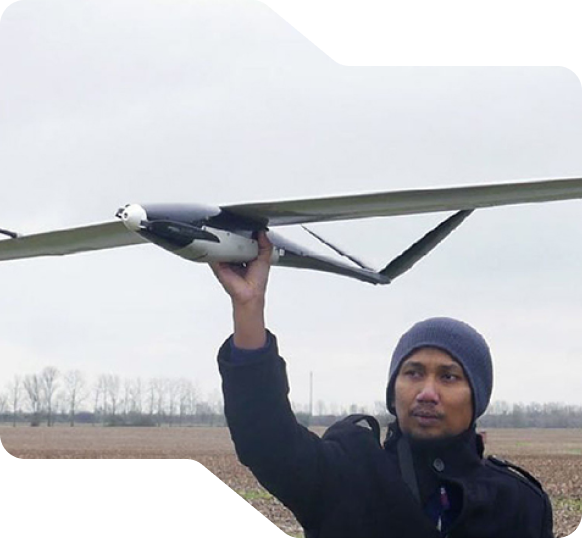

Fixed Wing - Cumulus One
Workhorse for Orthophoto / Aerial Mapping
Long Range Mission and Large Area with Limited Landing Space
Design for GIS applications (mapping). The aircraft could carry more than 600g payloads with deep stall landing capability makes the aircraft is perfect for difficult terrain mapping. The craft features removable wings and fail-safe mechanisms for enhanced security, and is capable of autonomous takeoff and landing. It is highly autonomous fixed wing drone. Flight time up to three hours, hand launched and vertical landing with high precision. This drone also is available for Sale from our company
Fixed Wing - eBee
Workhorse for Orthophoto / Aerial Mapping
Short Range Mission with Medium Area
eBee is a professional mapping drone (UAV) by senseFly. Use it to capture aerial photos, then produce orthomosaics and 3D models with absolute accuracy of down to 3 cm per pixel. The size of eBee let users conduct mapping in an urban areas. Require minimum landing and take-off space makes eBee a perfect solution for mapping in town. The weight of eBee is below 750g let the eBee operates in a very safe environment. it will not have a significant damage to either human or infrastructures.
Multirotors - F8
Workhorse for Industrial Inspection
Designed to take aerial oblique photograph either for inspection or surveying. Our V-Shaped Octocopter is made in Germany and designed with sophisticated technology that gives us confident to conduct any aerial photography task. It has been designed with high safety measure where it is Auto Pilot has been tested for more than 100,000 hours. Safety is the most priority in our job, therefore we chose this multi rotors as our chosen workhorse instead of cheap china made multi rotors. When searching for the perfect image it often comes down to only a few centimetres difference in the position of the camera. Our UAV offers this precision. It allows you the freedom to select your perspective. Between light and shadow, horizon and zenith, every subject is available to you – and is often just a“click” away.
Multirotors - i1
Workhorse for Oblique Videography
Designed to take aerial oblique videography. Equipped with latest sensor with 4K resolution for ultra high definition videos. This makes i1 suitable for videography and cinematography . The size of i1 makes it portable enough to carry to anywhere around the world. With advanced functions, it lets users to individually control the camera and aircraft to achieve more accurate shots.
Multirotors - IFAH
Workhorse for Aerial Survelliance
IFAH UAV is suitable for various type of industrial applicagons such as search and rescue, security surveillance, offshore inspecgons, marine surveillance and many more other applicagons. IFAH UAV is customizable for many applicagons depending on the client requests and requirements.
PROVIDE HIGH QUALITY INFORMATION

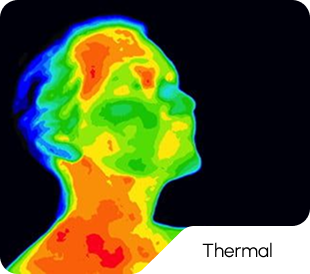

TYPE OF SENSOR
IFCON PRODUCT

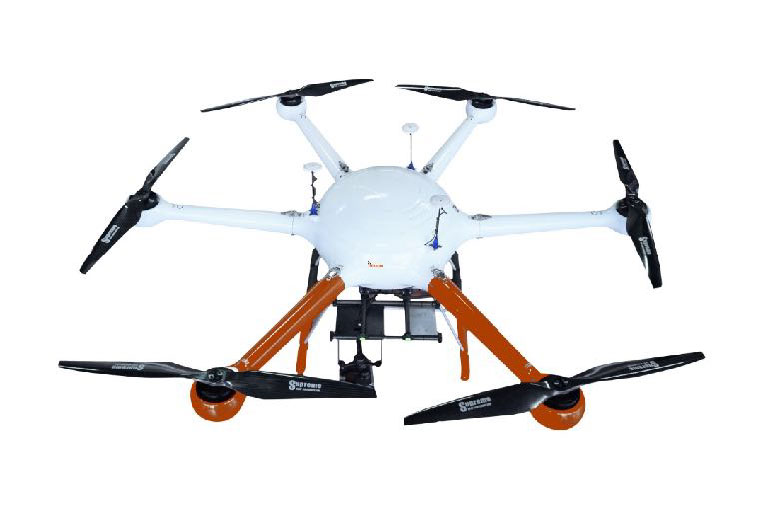

IFCON AERIAL HYBRID (IFAH)
IFAH Highlights
- IFAH is a hexacopter type heavy-lift hybrid-electric multirotor UAV. Which is able to fly long duration’s it is able to convert a gasoline-powered system into electricity
- This hybrid technology gives it extreme flight endurance and redundant power for safe and reliable operations.
- The IFAH UAV frame is constructed from composite carbon fibre materials which make the
IFAH UAV very strong and durable. - The powertrain arms of IFAH are easily detachable from the main fuselage for easy transportation and storage.
- IFAH UAV system is able to be setup and fully operational within 15 – 20 minutes of arrival at site.
- Apart from long flight duration and robust build, IFAH UAV is also equipped with triple
redundancy flight system, which incorporates 3 GPS, 3 IMU and 3 Magnetic sensor units for the
best performance in guidance, navigation and control. - In the case of any interference to the UAVs main control system, two backup systems are ready to take over the flight system in an instance, enabling smooth transition between multiple backup systems.
- Additional redundancy for IFAH UAV also include the ability to operate and land safely even in the the event of one motor failure.
- IFAH UAV is durable in tropical weather – able to operate in winds of up 30 knots and medium to light rain.
- IFAH UAV is suitable for various type of industrial applications such as search and rescue, security surveillance, offshore inspections, marine surveillance and many more other applications.
- IFAH UAV is customizable for many applications depending on the client requests and requirements.
- IFAH is a hexacopter type heavy-lift hybrid-electric multirotor UAV. Which is able to fly long duration’s it is able to convert a gasoline-powered system into electricity
- This hybrid technology gives it extreme flight endurance and redundant power for safe and reliable operations.
- The IFAH UAV frame is constructed from composite carbon fibre materials which make the
IFAH UAV very strong and durable. - The powertrain arms of IFAH are easily detachable from the main fuselage for easy transportation and storage.
- IFAH UAV system is able to be setup and fully operational within 15 – 20 minutes of arrival at site.
- Apart from long flight duration and robust build, IFAH UAV is also equipped with triple
redundancy flight system, which incorporates 3 GPS, 3 IMU and 3 Magnetic sensor units for the
best performance in guidance, navigation and control. - In the case of any interference to the UAVs main control system, two backup systems are ready to take over the flight system in an instance, enabling smooth transition between multiple backup systems.
- Additional redundancy for IFAH UAV also include the ability to operate and land safely even in the the event of one motor failure.
- IFAH UAV is durable in tropical weather – able to operate in winds of up 30 knots and medium to light rain.
- IFAH UAV is suitable for various type of industrial applications such as search and rescue, security surveillance, offshore inspections, marine surveillance and many more other applications.
- IFAH UAV is customizable for many applications depending on the client requests and requirements.
IFAH Specification
FLIGHT
POWER
SPECIALTIES
PAYLOAD
OPTIONAL SENSOR
OPTIONAL PAYLOAD
FLIGHT
- Flight time – 3 to 5 hours
- Flight controller – Custom Pixhawk 2.1 ,
- A3Pro , Ifagro
- Wing Span – 2.3 meters
- Max flight Speed -17m/s
POWER
- Working Voltage – 12s/48v voltage
- Fuel consumption 1.5 L/H
- Hybrid system with Generator with 2kw Max
SPECIALTIES
- Max take of weight – 21kg
- Rain Proof
- Detachable Main Body and arm for easy mobilization
- 7Km Video Downlink & Data (Can be upgraded to up to 50km
- Triple Redundency GPS system
PAYLOAD
- Z30 with 30x zoom Optional Camera
- Thermal Camera Flir Or Custom
- DSLR / SLR with Gimbal
- Dual camera option ( 1 RGB , 1 IR )
- Mapir Camera
- Custom system
OPTIONAL SENSOR
- Air quality Measurement for Carbon Monoxide (CO),Nitrogen oxides ( NOx) , Sulfer oxides ( SOx )
OPTIONAL PAYLOAD
- Parachute for emergency recovery.
- Ping system / GPS Tracker
WHY Ifcon Aerial Hybrid - IFAH?
- High Endurance
- Large Payload
- Easy portability
- Fast Deploy time
- Vertical landing
- Dual payload option
- Stable
IFAH PAYLOAD OPTION
- Any DSLR / Mirrorless Camera
- FLIR XT , XT2
- DJI-Z30
- Workswell-Wiris
- Optopus-Epsilon
- Scentroid-DR1000
IFCON PRODUCT

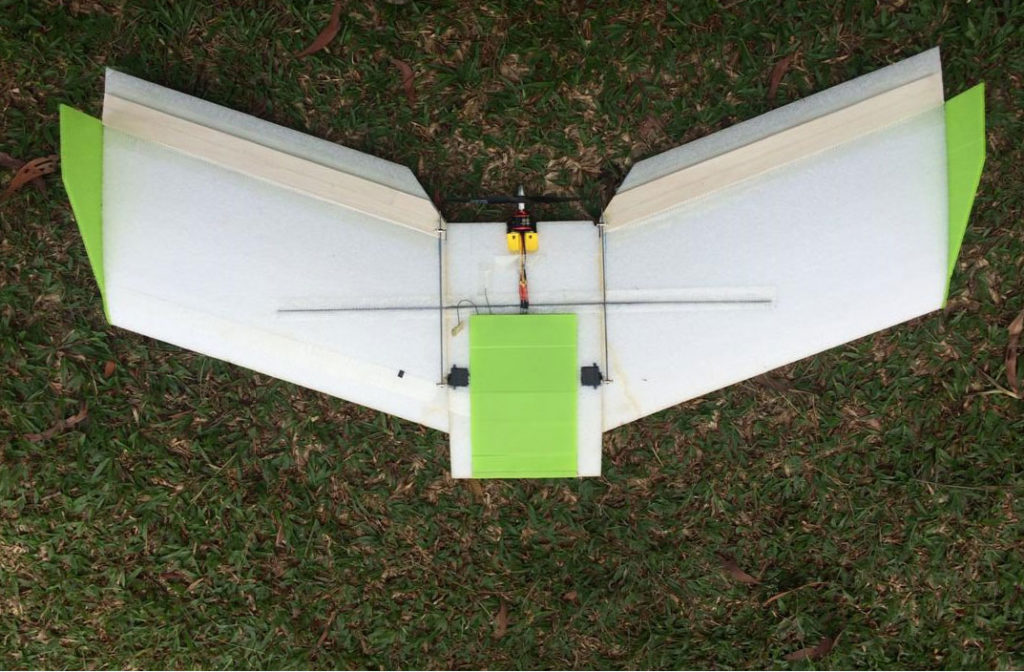

UAV AND ELECTRONICS DESIGN
- Customised drones tailored to your business needs. Ifcon Technology allows users to have a specific use-case. If you could not find anything off-the-shelf, let us help you with the customization.

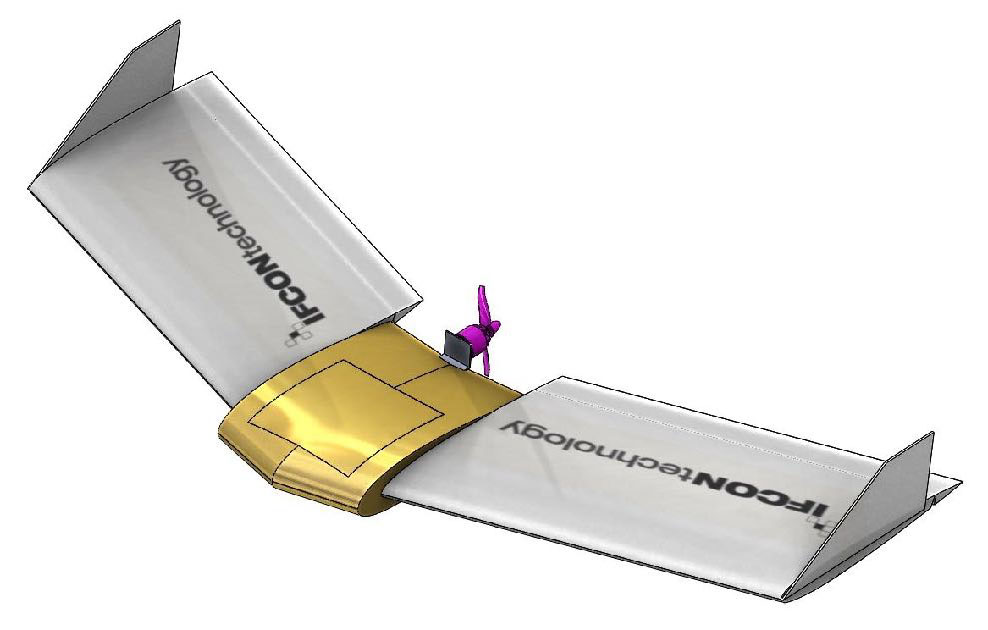

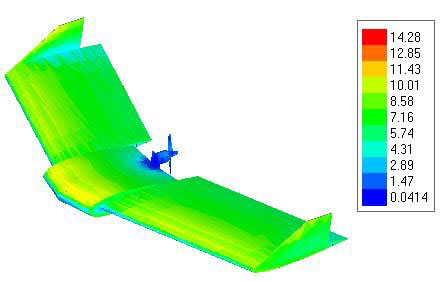

- Our service include custom design in 3D Cad and allows users to integrate a customer sensors according to your business needs.
- Our engineer will help you to design a mechanical mount and power supply. With our expertse in the field of unmanned aerial systems., we offer complete solutions from design and development to manufacturng and code writing.

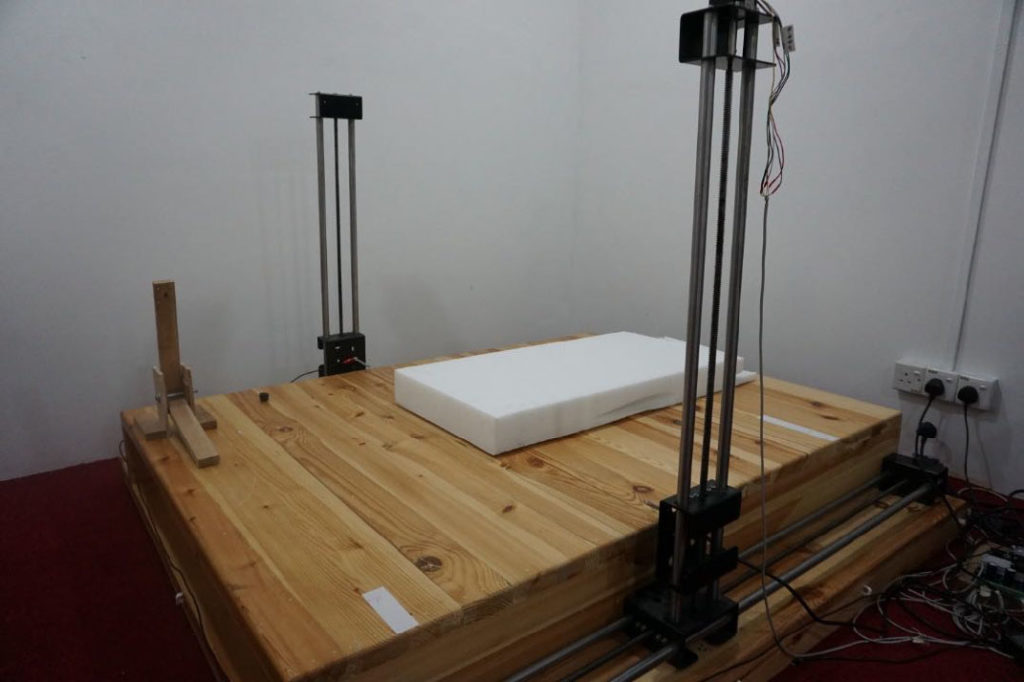

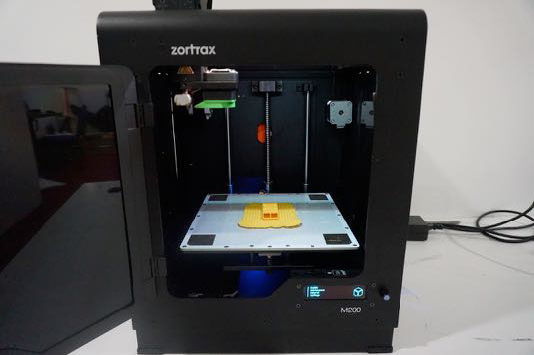

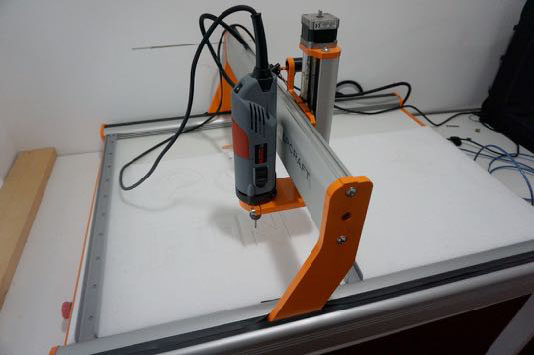

- Our lab equipment enough to do a rapid prototyping to meet your unique requirements and industrial environment.
- On the other hand, since we are also a software house, we also can help you to build custom Apps for sensor data and management support for the data Visulisation including storing datas on the cloud.
- We will beautifully integrate a diverse range of UAV sensors, payload and back-end systems.
